Rugged Built
IP65 Rating
1000mAh
9-90v
Multi Sensor Support
Deep Vehicle Diagnostics Meets 4G Speed.

Pulse IQ (4G CANBus)

SKU: TXFTL1P2
49993559

The ultimate plug-and-play solution, unlocking deep vehicle health data and diagnostics directly from your car’s computer brain

Estimated delivery: June 21 - June 28
Free shipping & returns: On all orders over $50
Guarantee safe and secure checkout
Deep Vehicle Diagnostics Meets 4G Speed.

Pulse IQ (4G CANBus)

The Pulse IQ is the most advanced plug-and-play tracker available. It doesn't just track location and driving behavior; it communicates directly with your vehicle’s on-board computer via the CANBus system. This unlocks a deeper level of vehicle health data and diagnostics that standard trackers can't access. Delivered over a fast 4G connection, it’s the ultimate tool for those who want complete visibility into their vehicle's status, health, and location without lifting a wrench.

Advanced CANBus Data
Fast 4G Connectivit
Detach Detection

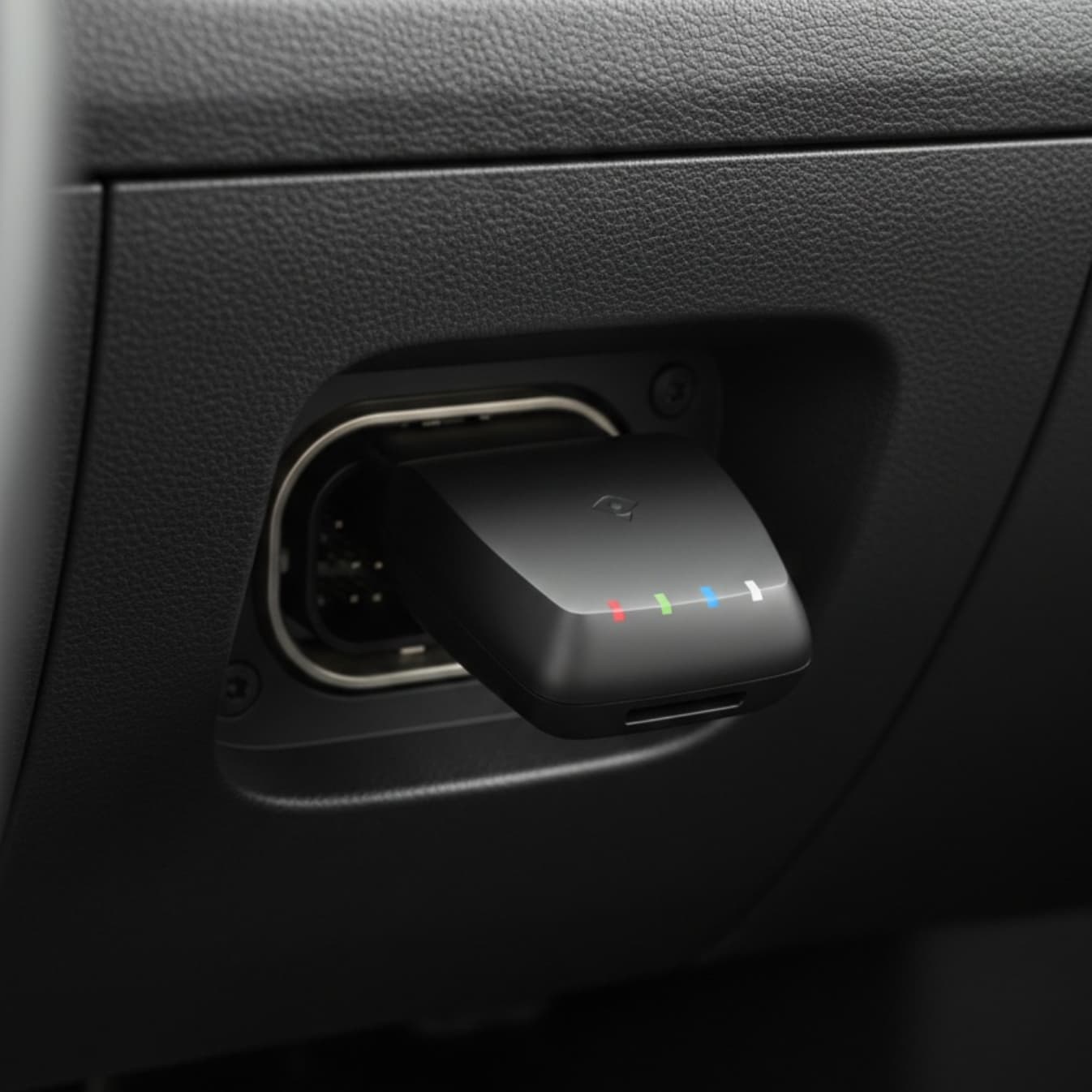

Ultimate Plug & Play
Discover more
Protocol Support
Traxsmart Protocol
Supported Alerts
Over speeding, Harsh braking, Harsh acceleration, Ignition ON/OFF, Tow detection, Power cut, Geofence entry/exit
GPS Tracking
Live location updates, geo-fencing enabled
Power Backup
90mAh internal battery for power-loss protection
OTA Updates
Over-the-air configuration and firmware upgrade support
Model
TXFTL1P2
Connectivity
4G
Connector

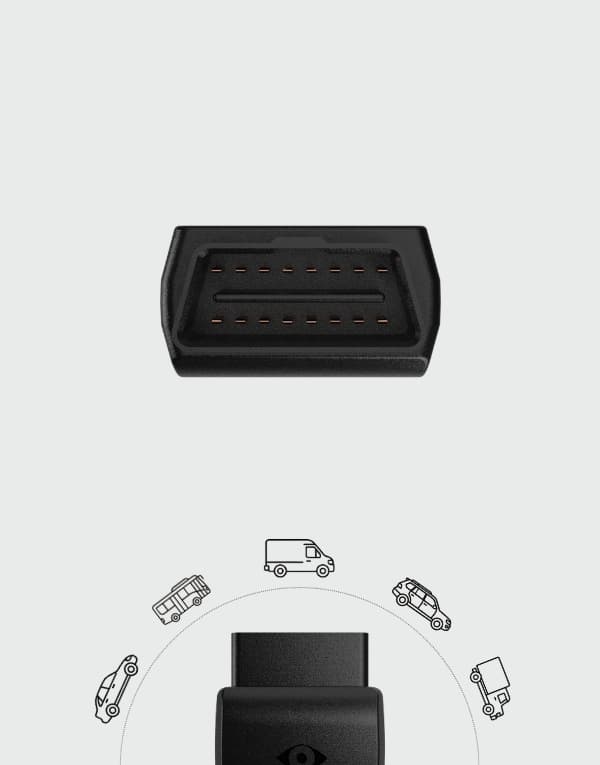

OBD Connector
Power Supply
9–40 V DC
Internal Battery
3.7 V Li-Ion, 90 mAh
Ignition Detection
Yes
Driving Behaviour Monitoring
Yes
Unplug Detection
Yes
CAN Bus/OBD Data
Yes
Cellular
LTE Cat-1
LTE Features
Max data rates: LTE-FDD 10 Mbps (DL) / 5 Mbps (UL), LTE-TDD 8.96 Mbps (DL) / 3.1 Mbps (UL)
GNSS Features
Supports GPS, GLONASS and Galileo
Communication
TCP
Antenna
High Gain Onboard GNSS Antennas & Flexible GSM antenna
LEDs
Power, GSM, GPS and Debug
Device Working Mode
Active mode & Sleep mode
SIM Type
Plastic SIM
Operating Temperature
Normal: -35°C to +75°C, Extended: -40°C to +85°C, Storage: -40°C to +90°C
Protections
Reverse Polarity, Overvoltage, Short Circuit, Surge
Packaging information
TSindia140 GPS Device
Wiring Harness
External GNSS & GSM Antennas (if applicable)
SOS Button (AIS140 variant)
Installation Guide
Shipping Information
Free shipping on orders over ₹10,000
Standard delivery: 3–7 business days
Express delivery available at checkout
International shipping via DHL/FedEx
Secure, pre-tested and sealed packaging
Bulk Orders

We support large-scale deployment for fleet operators, system integrators, OEMs, and government projects. Special pricing, custom branding, and integration support available for orders of 50 units or more. Reach out to our sales team for volume discounts and tailored logistics.

For custom labeling, pre-configuration, or white-label requests, contact our enterprise sales desk. Contact Us
